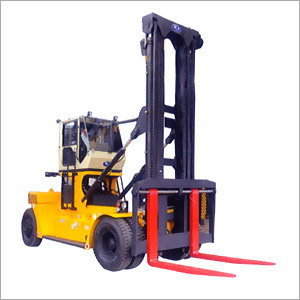

12 ton Fork Lift Trucks

12 ton Fork Lift Trucks
12 ton Fork Lift Trucks
Product Code : LT-12
Brand Name : SCA HEAVY EQUIPMENTS
Product Specifications
  • Minimum Order Quantity
  • Condition
  • New
  • Power Source
  • Diesel Engine
  • Rated Capacity
  • 12 tons
Product Description

12 ton Fork Lift Trucks

Following the varied needs of customers, we have become instrumental in offering supreme quality 12 ton Fork Lift Trucks. The offered trucks are used for lifting heavy duty applications. The provided trucks are precisely manufactured at our hi-tech manufacturing unit using the excellent quality components and pioneering technology under the supervision of our adroit professionals. Beside this, our provided 12 ton Fork Lift Trucks can be availed by our customer in numerous specifications as per their needs and at affordable prices.

Features:

  • Corrosion resistance

  • Robust construction

  • Excellent functionality

  • Low maintenance

Specifications:

Description



Model


LT-12

Lifting Capacity

kg

12000

Lift Height

m

6

Load Centre

mm

900

Driving Speed -(Laden/Unladen)

Km/h

22/66

Lifting Speed (Laden /Unladen)

M/sec

0.24 / 02.6

Lowering Speed - (Laden/Unladen)

M/sec

0.30 / 0.20

Gross Vehicle Weight (Laden/Unladen)

kgs

30215 / 18215

Static Weight On Front Axle (laden/Unladen)

kgs

27535 /9005

Static Weight On Rear Axle (laden/Unladen)

kgs

2680/8210

Stability

%

32

Grade Ability Laden

%

33

Tyres - Front


11.00 x 20 , 16 PR - 4 Nos.

Rear


11.00 x 20 , 16 PR - 2 Nos.

Battery

v/AH

24 / 150 x 2

Engine - Make


Ashok Leyland

Model


ALHT4TIC3/1

Rated Power

Kw (hp)

74 (101)

Speed

RPM

2200

Peak Torque

Nm/rpm

395/1500

No. Of Cylinders/ Displacement

No./Cm3

4/4360

Transmission- Make


AVTEC

Model


TRT 2221

Type


Powershift with Torque convertor

No. Of Gears - F/R


2 / 2

Drive Axle Make


MERITOR

Model


R 1495

Static Capacity

Kgs

30,000

Brake


Dry Type Drum Brake

Service Data- Hydraulic Tank

Ltrs

200 (68 grade)

Fuel Tank

Ltrs

160 (diesel)

Engine

Ltrs

15 (15 W40)

Transmission

Ltrs

18 (C4 SAE 30)

Drive Axle 0 Differential

Ltrs

16 (EP 90)

Hub

Ltrs


DIMENSION


UNIT

LT-12

FORK THICKNESS

H1

MM

80

FREE LIFT

H2

MM

NO

CLOSED HEIGHT - ZERO LIFT

H3

MM

4720

LIFT HEIGHT

H4

MM

6000

CLOSED HEIGHT- MAX LIFT

H5

MM

7720

HEIGHT

H6

MM

2945

HEIGHT

H7

MM

2030

LENGTH

L

MM

5200

FORK LENGTH

L1

MM

1800

LENGTH

L2

MM

900

WHEEL BASE

L3

MM

3500

TURNING RADIUS

R1

MM

450

TURNING RADIUS

R2

MM

4600

WIDTH

B

MM

2470

FORK WIDTH

B1

MM

200

TRACK

B2

MM

1815

FORK-MAX

V

MM

2170

FORK-MIN

V1

MM

500
